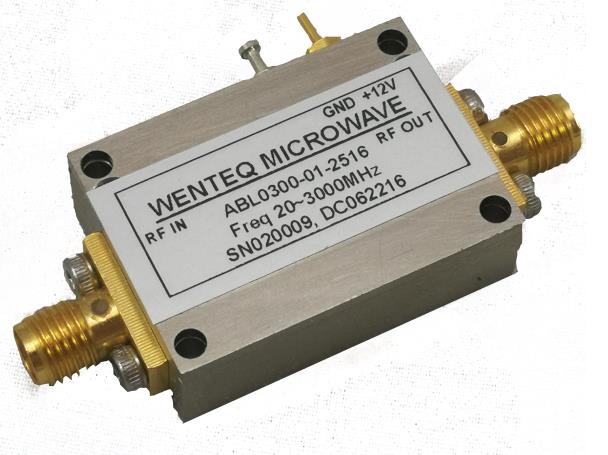

ABL0300-01-2516

Description

Features:
➢ Broad band operation from 20 to 3000MHz
➢ Low noise figure, good VSWR, unconditional
stable
➢ Excellent gain flatness
➢ SMA female connector I/O
➢ built-in voltage regulator, single DC power supply
required
➢ Operating temperature -40~+85°C, storage
temperature -55~+85°C

General Description
ABL0300-01-2516 is a two stage enhancement mode pHEMT low noise transistor based broadband low noise
amplifier module operating in the frequency range from 20MHz to 3.0GHz. The amplifier provides 25dB of small
signal gain with 1.6 dB typical noise figure and excellent gain flatness. The amplifier requires only a single positive
DC power supply. Its built-in DC voltage regulator and reverse polarity protection circuitry allows the amplifier to
function at different DC supply voltages without affecting the RF performances.
