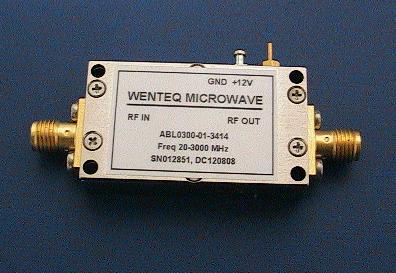

ABL0300-01-3414

Description

Features:
 Octave bandwidth, specification from
10~3000MHz, usable from 10~3500MHz
 Low noise figure, and high gain
 Low VSWR, unconditional stable
 SMA female connector I/O
 Single DC power supply, low power
consumption, internal voltage regulator, operating voltage from +10~+15V
 Operating temperature -40~+85°C, storage
temperature -55~+125°C

General Description
ABL0300-01-3414 is a three stage enhancement mode pHEMT low noise transistor based broadband low
noise amplifier module operating in the frequency range from 10MHz to 3.0GHz. The amplifier provides
34dB of small signal gain with 1.4 dB typical noise figure and excellent gain flatness. The amplifier
requires only a single positive DC power supply. Its built-in DC voltage regulator and reverse polarity
protection circuitry allows the amplifier to function at different DC supply voltages without affecting the
RF performances.
