Description
Features:
➢ Broad band operation from 10MHz to 6 GHz
➢ Low VSWR, unconditional stable
➢ SMA female connector I/O
➢ Single DC power supply, internal voltage
regulator, operating voltage from +9.5~+15V
➢ Operating temperature -40~+85°C, storage
temperature -55~+125°C
General Description

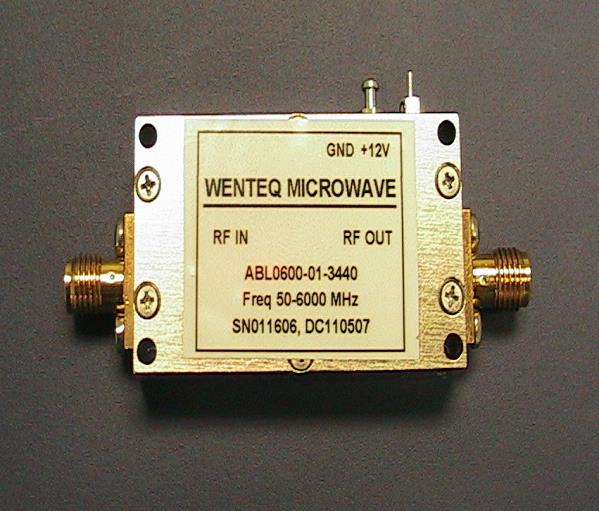

ABL0600-01-3440 is a three stage InGaP/GaAs HBT based broadband low noise amplifier module
operating in the frequency from 10MHz to 6.0 GHz. The amplifier provides 34dB of typical small signal
gain with 3.0dB typical noise figure, and requires only a single DC power supply. Its built-in v
