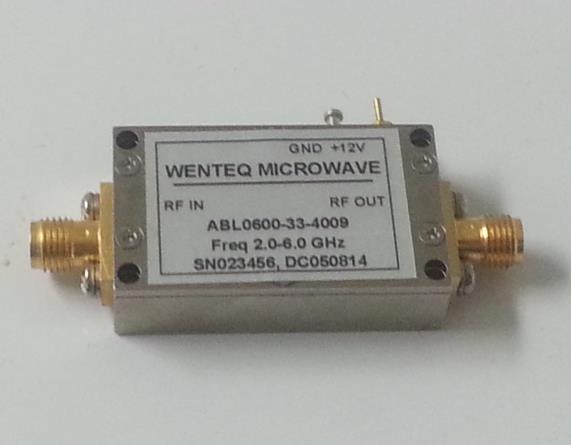

ABL0600-33-4009

Description

Features:
➢ Broad band operation from 2.0 to 6.0 GHz
➢ Low VSWR, unconditional stable
➢ Small size, low cost
➢ SMA female connector I/O
➢ Single DC power supply, internal voltage
regulator allowing operating voltage from +8V
to +15V range
➢ Operating temperature -40~+75°C, storage
temperature -55~+125°C

General Description
ABL0600-33-4009 is a three stage pHEMT transistor based broadband low noise amplifier
module operating in the frequency of 2.0 to 6.0GHz. The amplifier provides 40dB of small
signal gain with 0.9dB noise figure and excellent gain flatness, as well as good VSWR at both
input and output. The amplifier requires only a positive DC power supply, its built-in DC voltage
regulator allows for different DC voltage supply application.
